Electric Work: See inside main breaker box

Tuesday, February 10, 2015

See inside main breaker box

How to Install subpanel · Electrical formulas

Push down breaker Plug-in breakers Fits residential panels Fits subpanels above Buy double-pole Siemens 15-125 amp

240-Volt-circuit-breaker-box-subpanel

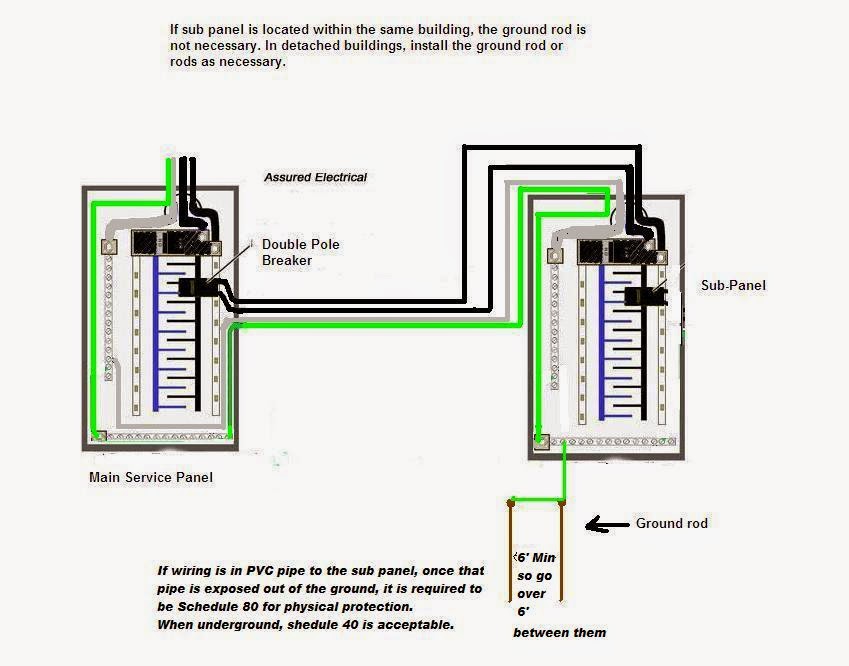

sub panel wire main. panel is also required for attachment to the ground bar if the sub panel is not in the same structure as the main panel supplying power to it. Diagram below is correct

Bonding diagram. Sub Panel Main Lug Load Center - Single Phase

Wiring Shop Need Advice - Electrical. 4-Wire subpanel detached. Wiring shop need advice-diversion

No comments:

Post a Comment

Subscribe to: Post Comments (Atom)

Commercial and Industrial Wiring and Raceway Chart (continued)

Conductor size based on 75C Terminal rating [110.(C)(1)].

Ampacity based on four 90C current-carrying conductors

Table 310.15(B)(3)(a) and

Table 310.(B)(16).

Maximum continuous nonlinear load in an ambient temperature of 30C limited to 80 percent of

the overcurrent device rating or

the conductor ampacity,

which ever is less

[210.19(A), 240.6(A), 215.2(A)(1)].

To ensure ease of installation, raceways are sized to

six THHN conductors in PVC conduit [Annex C. 10].

Copper equipment grounding conductor is sized in accordance with Table 250.122.

Maximum continuous load is limited to 80 percent of 75C

conductor ampacity because the conductor ampacity is lower than

the overcurrent protection device rating.
